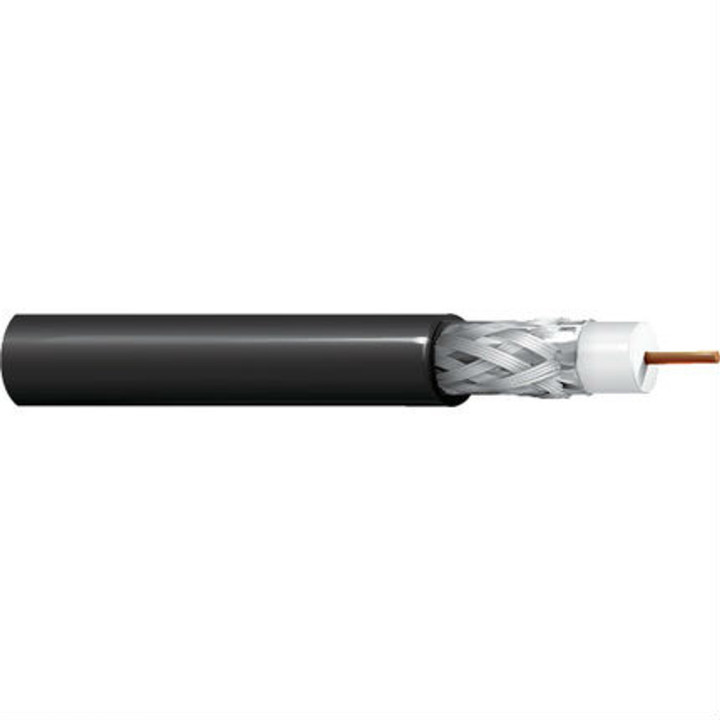

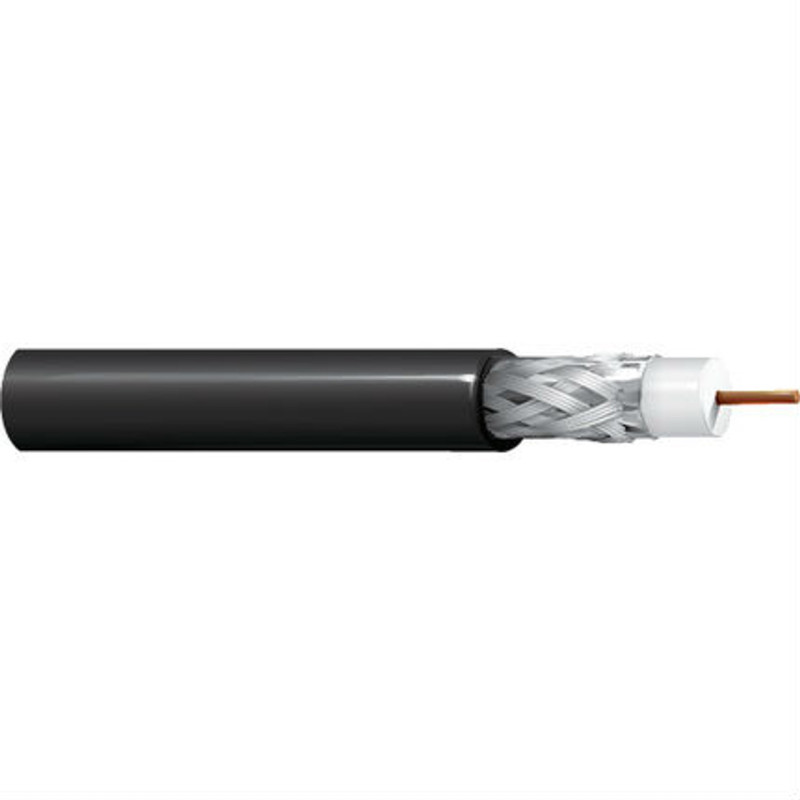

RG6 Dual Shield Coax Cable
EGP3.20
Tax included
75 Ohm | 18 AWG | Shielded | PVC | CM Rated | Tested to 3 GHz | U/V Inhibitor | ETL Listed
Security policy
Click Here To View Our Secure Payments
Delivery Policy
Click Here To View Our Delivery Policy
Return policy
Click Here To View Our Return Policy

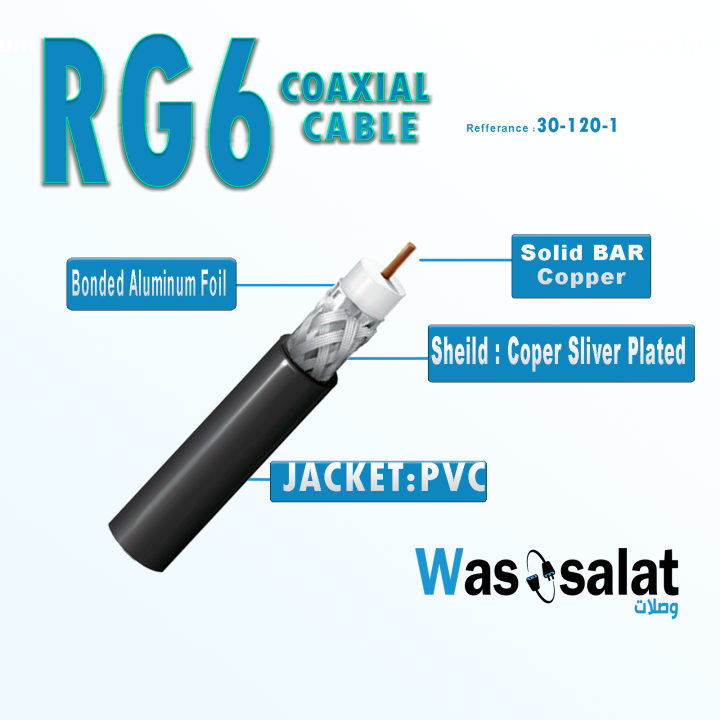

Broadband Coax, Series 6, 18 AWG Solid BCCS, Foil + 60% AL Braid, PVC Jkt, CM
Product Overview
|
Suitable Applications |
Broadband, Cable Television (CATV), RF drop cable, Over-The-Air (OTA) antennas |
|---|
Construction Details
|
Series Type |
6 |
|---|
CONDUCTOR
|
Size |
Stranding |
Nom. Diameter |
Material |
|---|---|---|---|
|
18 AWG |
Solid |
0.040 in |
BCCS - Bare Copper Covered Steel |
INSULATION
|
Material |
Nom. Insulation Diameter |
|---|---|
|
PE - Polyethylene (Foam) |
0.180 in (4.57 mm) |
OUTER SHIELD
|
Layer |
Outer Shield Type |
Material |
Material Trade Name |
Coverage |
|---|---|---|---|---|
|
1 |
Tape |
Tri-Laminate (Alum+Poly+Alum) |
Duobond® II |
100% |
|
2 |
Braid |
Aluminum |
60% |
OUTER JACKET
|
Material |
Nom. Diameter |
|---|---|
|
PVC - Polyvinyl Chloride |
0.270 in (6.86 mm) |
|
Overall Cable Diameter (Nominal) |
0.270 in (6.86 mm) |
|---|
Electrical Characteristics
RETURN LOSS
|
Frequency |
Min. Structural Return Loss |
|---|---|
|
5 - 1000 MHz |
20 dB |
30-120-1-10CM
