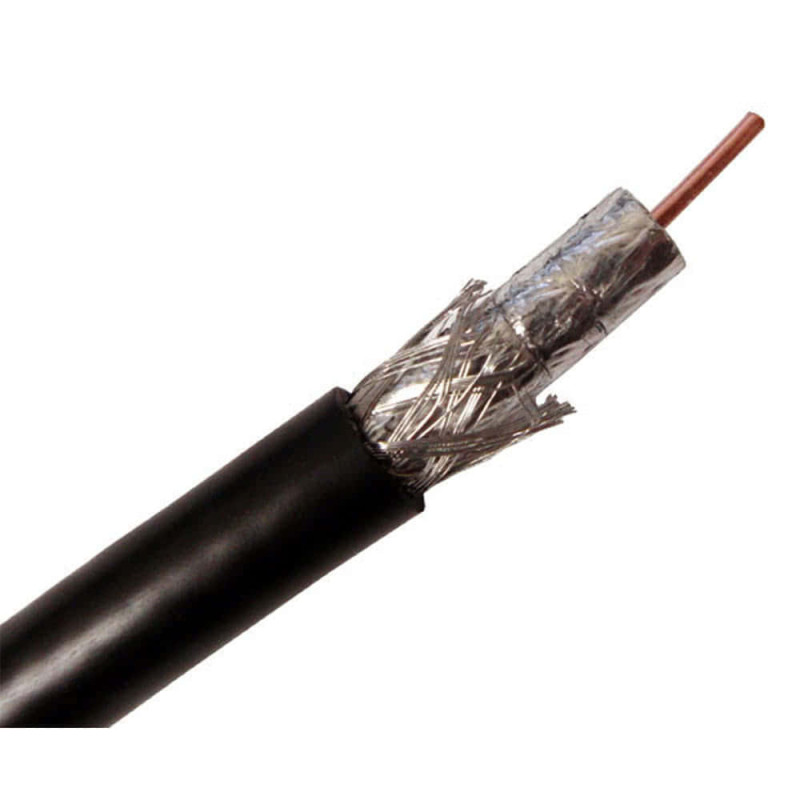

The Wassalat Belden 9292 RG-11 SDI Coaxial Cable is a high-performance, low-attenuation 75 Ohm broadcast-grade cable engineered for long-distance SDI video transmission.

With a 14 AWG solid bare copper conductor, gas-injected foam dielectric, and foil + 60% tinned copper braid shield, Belden 9292 provides exceptional signal integrity for:

• HD-SDI (1.5G)

• 3G-SDI (1080p)

• Analog composite video

• CCTV transmission

• RF and broadband distribution

Its very low attenuation makes it ideal for studios, OB trucks, broadcast facilities, and long-run video infrastructure where RG-6 cannot meet the required distance.

• True Belden 9292 RG-11 broadcast video coax

• Supports long-distance HD-SDI and 3G-SDI

• 14 AWG solid bare copper center conductor

• Low-loss foam polyethylene dielectric

• Dual shielding: foil + 60% tinned copper braid

• Maintains stable 75Ω impedance

• Rugged PVC jacket for professional installation

• Ideal for camera runs, patching, and backbone video feeds

• Cable Type: RG-11 SDI / Analog Video Coax

• Impedance: 75 Ohm

• Conductor: 14 AWG (1.63 mm) solid bare copper

• Shielding: Aluminum foil + 60% tinned copper braid

• Dielectric: Gas-injected FPE (foam polyethylene)

• Jacket: PVC (Black)

• Outer Diameter: ~10.3 mm

• Velocity of Propagation: 84%

• Capacitance: ~54 pF/m

• 50 MHz: ~3.6 dB

• 100 MHz: ~5.0 dB

• 400 MHz: ~10.0 dB

• 1000 MHz: ~16.0 dB

• 1500 MHz: ~20.0 dB (HD-SDI range)

• 3000 MHz: ~30.0 dB (3G-SDI range)

• HD-SDI: 200–300 meters

• 3G-SDI: 150–250 meters
  (Real distances vary based on equipment.)

• SDI video backbone (HD-SDI / 3G-SDI)

• Long-distance camera runs

• Broadcast studios & OB trucks

• CCTV / analog video

• SAT/IF & MATV/CATV systems

• Low-loss RF and broadband distribution
