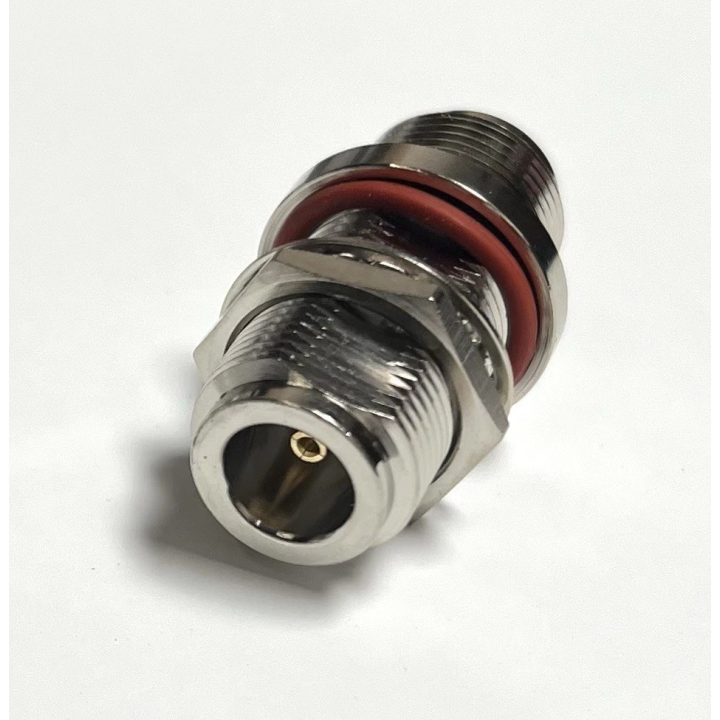

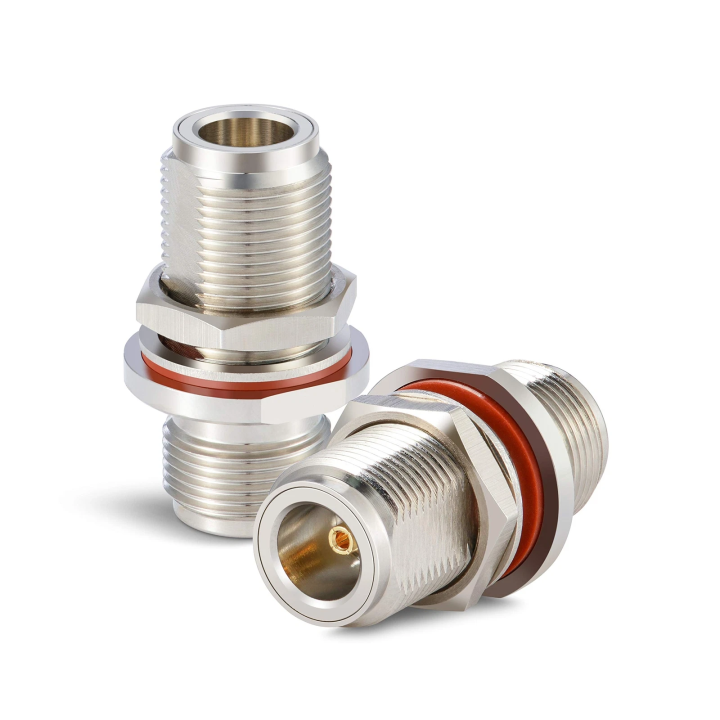

Ericsson N-Type Female to N-Type Female Coaxial Bulkhead Inline Coupler – RF-N101B

The N-Type Female to N-Type Female Bulkhead Inline Coupler – RF-N101B from Wassalat is a precision-engineered RF adapter that provides a secure connection between two N-Type male coaxial cables. The bulkhead design allows easy panel or chassis mounting, making it ideal for telecom, RF, and antenna applications.

Key Features

• N-Type Female to N-Type Female bulkhead inline coupler

• Model: RF-N101B

• Supports low-loss, high-frequency RF signals

• Bulkhead design for panel mounting

• Rugged, corrosion-resistant construction

• Long service life with >500 mating cycles

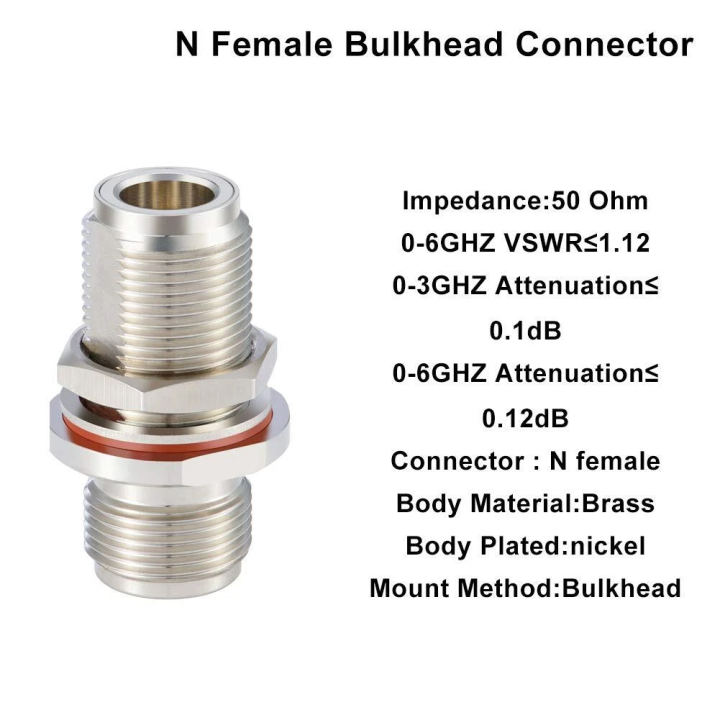

Specifications

• Connector Type: N-Type Female to N-Type Female (Bulkhead)

• Model: RF-N101B

• Impedance: 50 Ohm

• Frequency Range: DC – 11 GHz

• Material: Nickel-plated brass body

• Center Contact: Gold-plated brass

• Insulator: PTFE

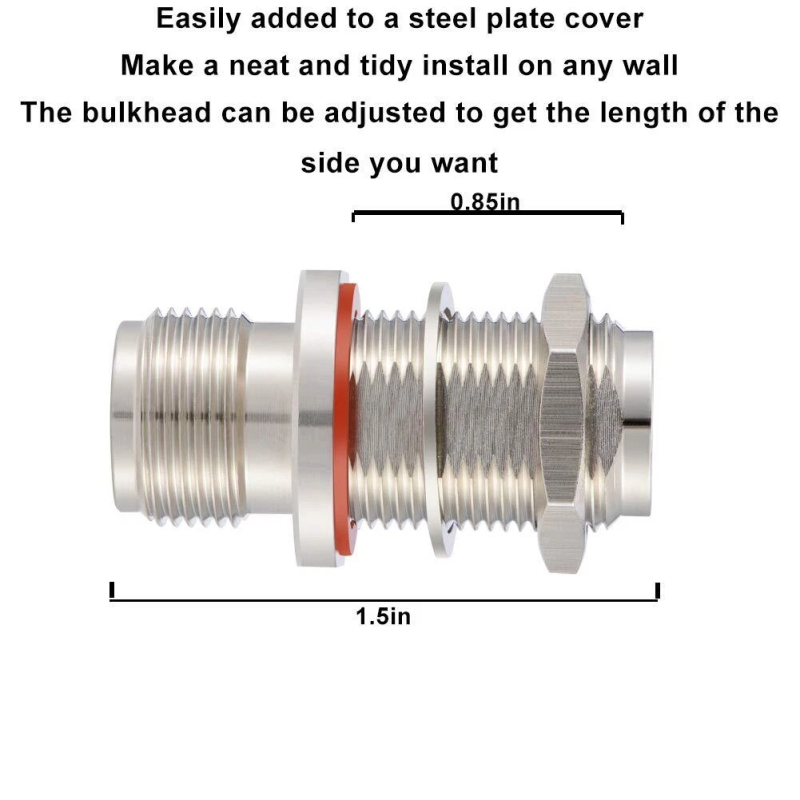

• Mounting: Bulkhead (panel/chassis)

• Durability: >500 mating cycles

Compatible Applications

• Telecom and cellular base stations

• RF communication equipment

• Antenna and satellite systems

• Laboratory and test setups

• Panel-mounted RF systems
