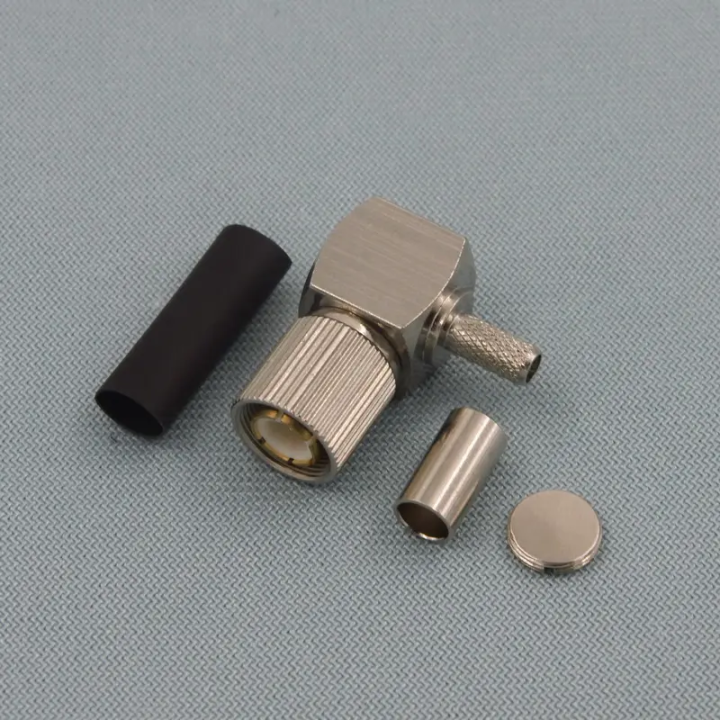

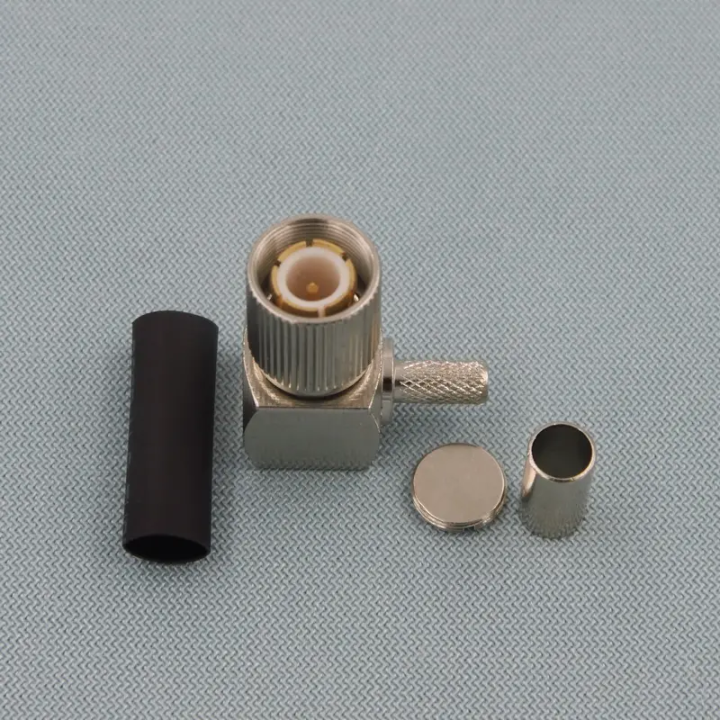

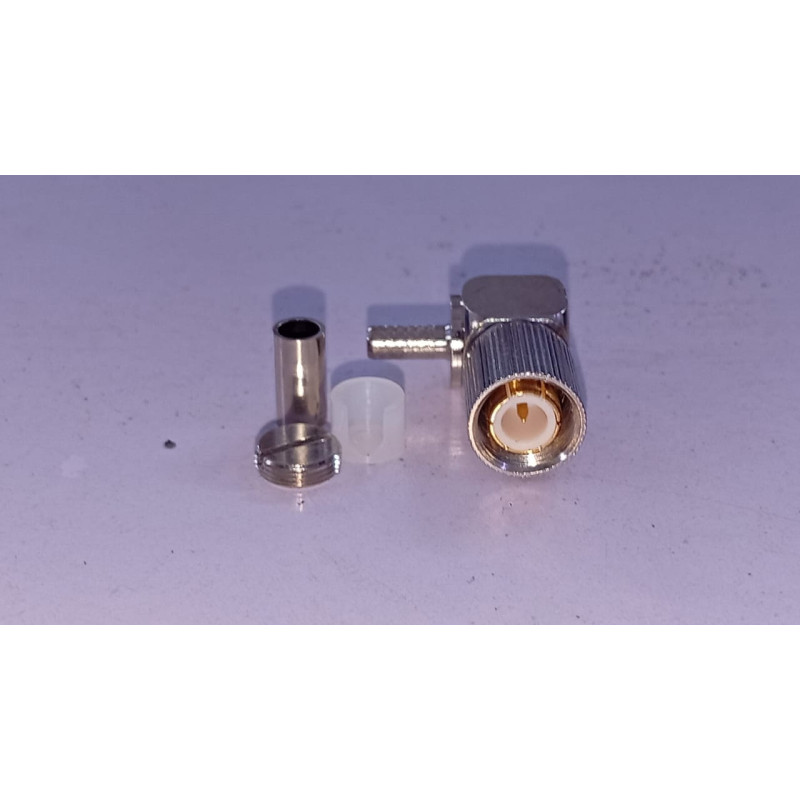

1.6/5.6 Male Plug Right Angle Crimp L9 Connector for Flex-3 Coaxial Cable

The Wassalat 1.6/5.6 Male Plug Right Angle Crimp (L9 Type) connector is a professional 75 Ohm RF connector designed for Flex-3 coaxial cable.
It combines compact size, excellent electrical performance, and a right-angle profile, making it ideal for use in broadcast equipment, communication systems, and high-density RF panels.

The connector features precision-machined brass, gold-plated contacts, and PTFE insulation, ensuring consistent impedance and low VSWR.
Its crimp termination provides a secure mechanical and electrical connection while maintaining shielding integrity.

Key Features:

• 1.6/5.6 (L9) series right-angle male plug connector

• 75 Ohm impedance, optimized for video and broadcast signals

• Crimp-style termination for Flex-3 cable

• Compact, right-angle design for limited space installations

• Excellent VSWR and return loss up to 3 GHz

• Gold-plated center contact for high conductivity and corrosion resistance

• Meets IEC 61169-24 and DIN 47295 standards

Specifications:

• Connector Type: 1.6/5.6 (L9) Male Plug, Right Angle, Crimp

• Impedance: 75 Ohm

• Frequency Range: DC – 3 GHz

• VSWR: ≤ 1.05 @ 1 GHz, ≤ 1.15 @ 3 GHz

• Contact Resistance: Center ≤ 3 mΩ; Outer ≤ 2 mΩ

• Insulation Resistance: ≥ 1000 MΩ

• Dielectric Withstanding Voltage: 1000 V rms

• Body Material: Nickel-plated brass

• Center Contact: Gold-plated brass

• Insulator: PTFE

• Cable Compatibility: Flex-3 (Ø ~4.9 mm)

• Mating Cycles: > 500

• Operating Temperature: -40 °C to +155 °C

Applications:

• Broadcast and video transmission systems

• Professional RF distribution panels

• Measurement and test equipment

• CCTV and surveillance systems

• Telecommunication and data networks
