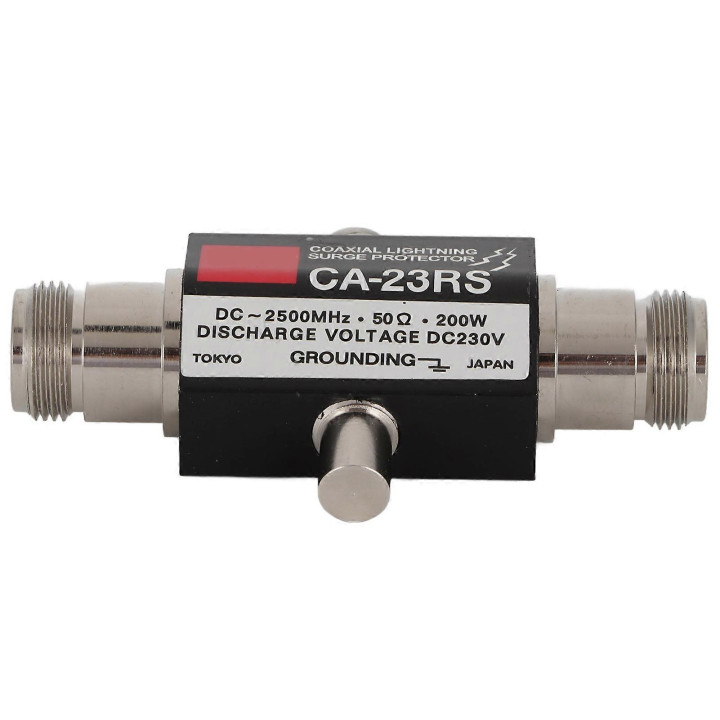

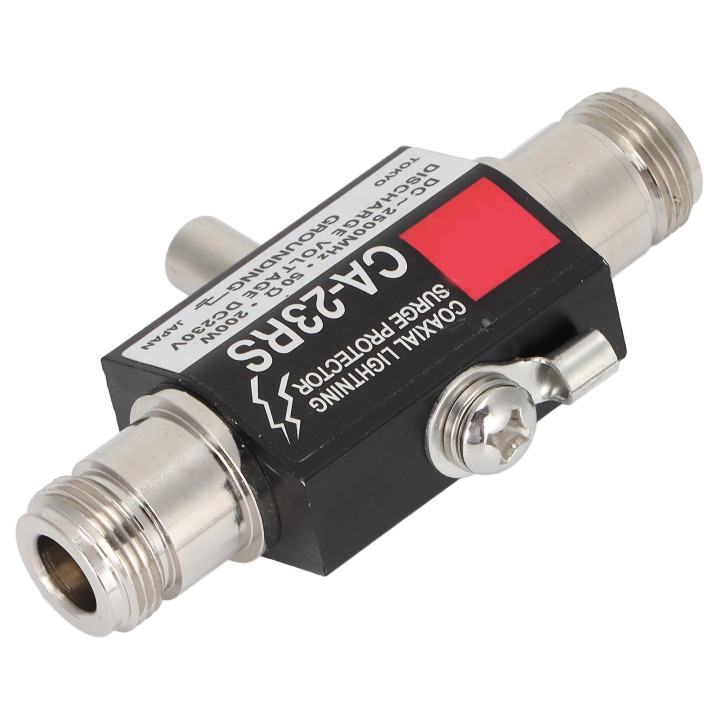

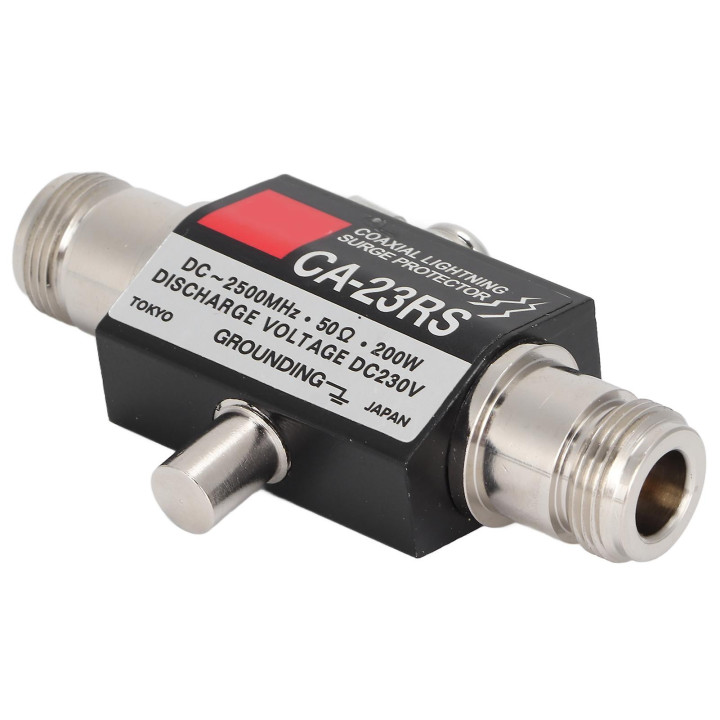

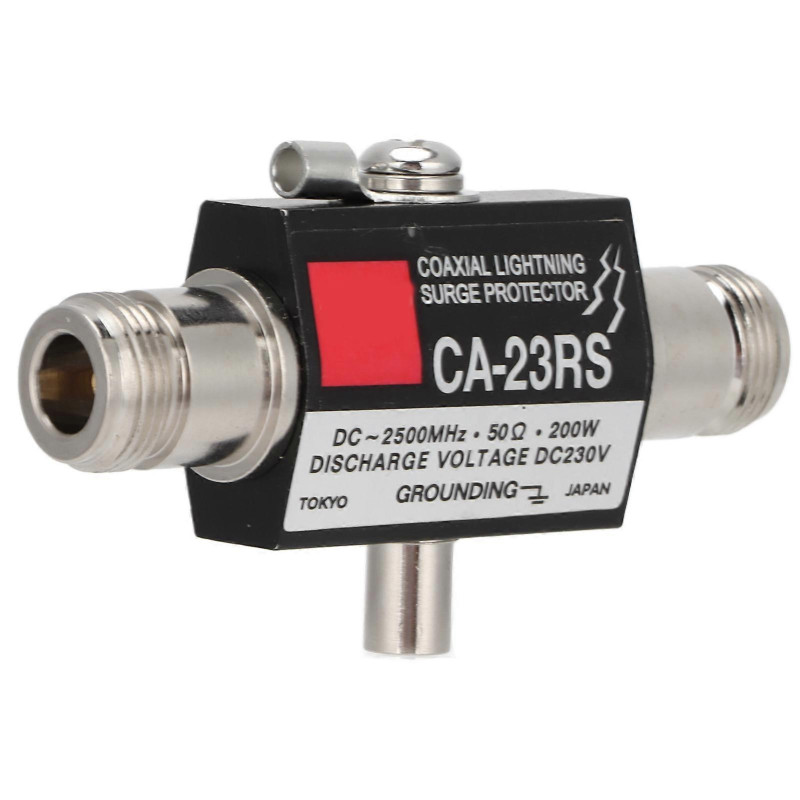

Coaxial Lightning Surge Arrester N Female to N Female – Antenna Lightning Surge Protector

The Wassalat Coaxial Lightning Surge Arrester (N Female to N Female) is a professional-grade RF surge protector designed to safeguard antennas, radios, wireless access points, and coaxial equipment from electrical surges and lightning strikes.

Built with wideband RF capability, low insertion loss, and high surge-handling performance, this arrester is suitable for Wi-Fi, LTE, 5G, radio communications, CCTV wireless links, IoT systems, and antenna installations.

The arrester uses a high-quality gas discharge tube (GDT) to safely divert surge energy to ground while maintaining signal integrity. Its rugged, weather-resistant body makes it ideal for indoor and outdoor antenna installations.

Key Features:

• N Female to N Female RF lightning surge protector

• Gas Discharge Tube (GDT) protection technology

• Wide frequency range for multi-system compatibility

• Low insertion loss and stable 50Ω performance

• High surge-handling capability for lightning protection

• Suitable for outdoor and tower-mounted antennas

• Weatherproof and corrosion-resistant construction (IP67 rated)

• Easy in-line installation with grounding lug

Specifications:

• Connector Type: N Female to N Female

• Impedance: 50 Ohm

• Frequency Range: DC – 3 GHz (varies by model)

• VSWR: ≤ 1.2:1

• Insertion Loss: ≤ 0.2 dB

• Surge Protection: Gas discharge tube (GDT)

• Surge Current Handling: Up to 10 kA (8/20 μs)

• Maximum Power: 200 W (varies with frequency)

• DC Blocking: Optional (models available)

• Body Material: Nickel-plated or stainless steel

• Insulator: PTFE

• Operating Temperature: –40 °C to +85 °C

• Weatherproof Rating: IP67

• Mounting: Grounding lug included

Applications:

• Antenna installations (Wi-Fi, LTE, 4G, 5G)

• Wireless access points and bridge links

• RF communication systems (VHF/UHF)

• CCTV wireless repeater systems

• IoT networks and telemetry stations

• Amateur radio and base station setups

• Outdoor towers, masts, and rooftop antenna mounts
