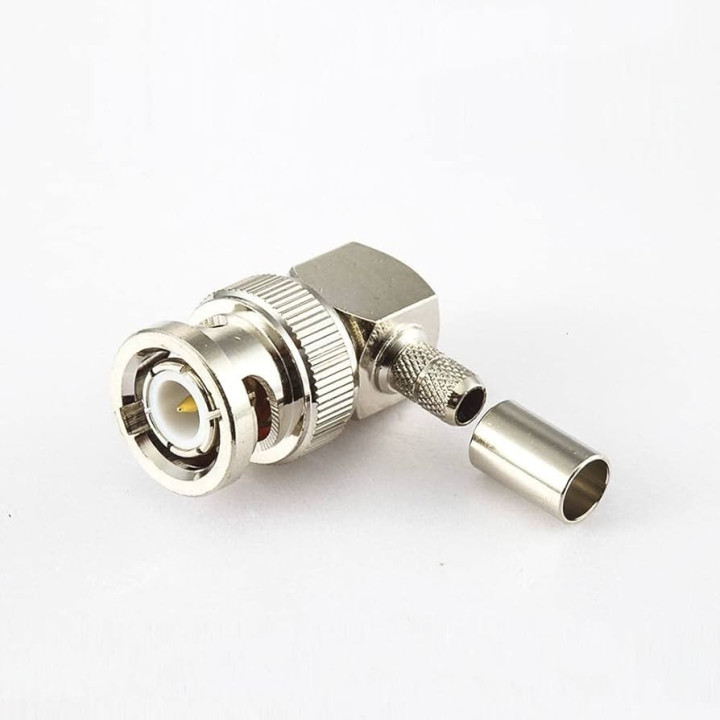

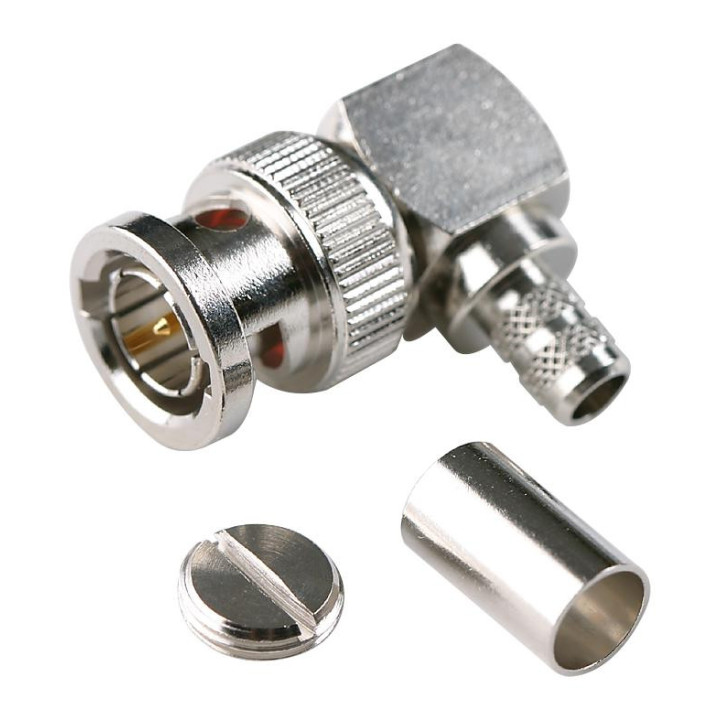

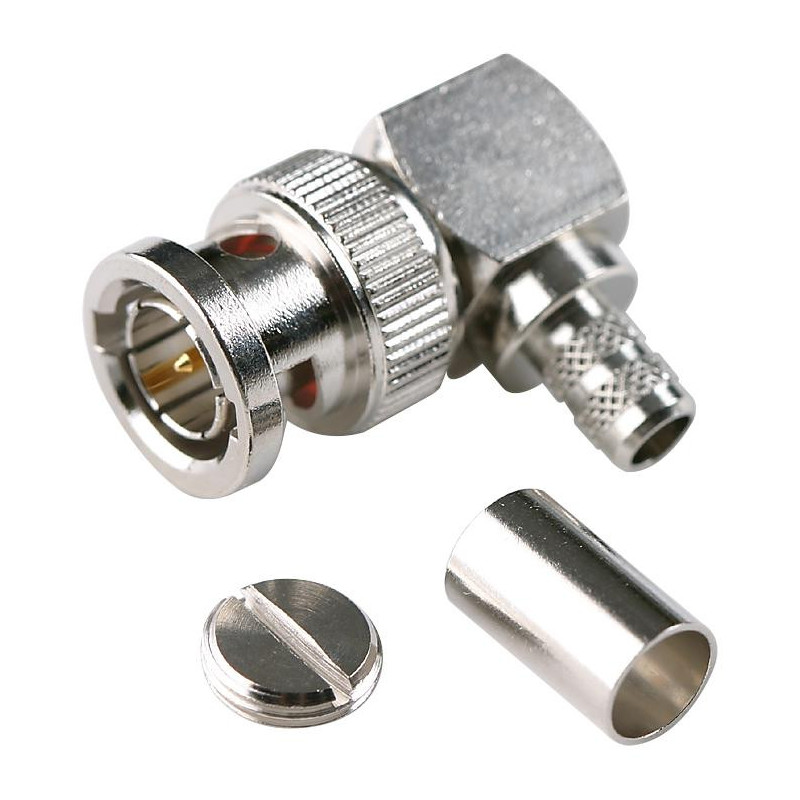

BNC Male 90° Connector – High‑Performance Right‑Angle RF Connector

The Wassalat BNC Male 90° Connector is a professional-grade RF connector engineered for superior signal transmission and space optimization. Designed with a right-angle form, it’s perfect for installations with limited space where standard straight connectors are not feasible. This connector ensures a tight, secure fit with minimal signal loss — ideal for CCTV systems, broadcast equipment, and test instruments.

Key Features

• 90-Degree Right-Angle Design for tight-space installations

• Secure BNC Twist-Lock Mechanism for stable connections

• Nickel-Plated or Gold-Plated Brass Housing for corrosion resistance

• Precision Machined Components for long-lasting performance

• Low Signal Loss for high-frequency applications

• Easy to Install with standard crimp or soldering tools

Specifications

• Connector Type: BNC Male

• Angle: 90° Right-Angle

• Impedance: 50 Ohm (also available in 75 Ohm on request)

• Frequency Range: Up to 4 GHz

• Material: Brass with nickel or gold plating

• Mounting Type: Cable mount or panel-mount adaptable

• Temperature Range: -55°C to +155°C

Compatible Devices & Applications

• CCTV and surveillance systems

• RF signal transmission and testing

• Oscilloscopes, signal analyzers

• Ham radios and RF antennas

• Broadcast and telecom systems

• Lab instrumentation and coaxial test setups
