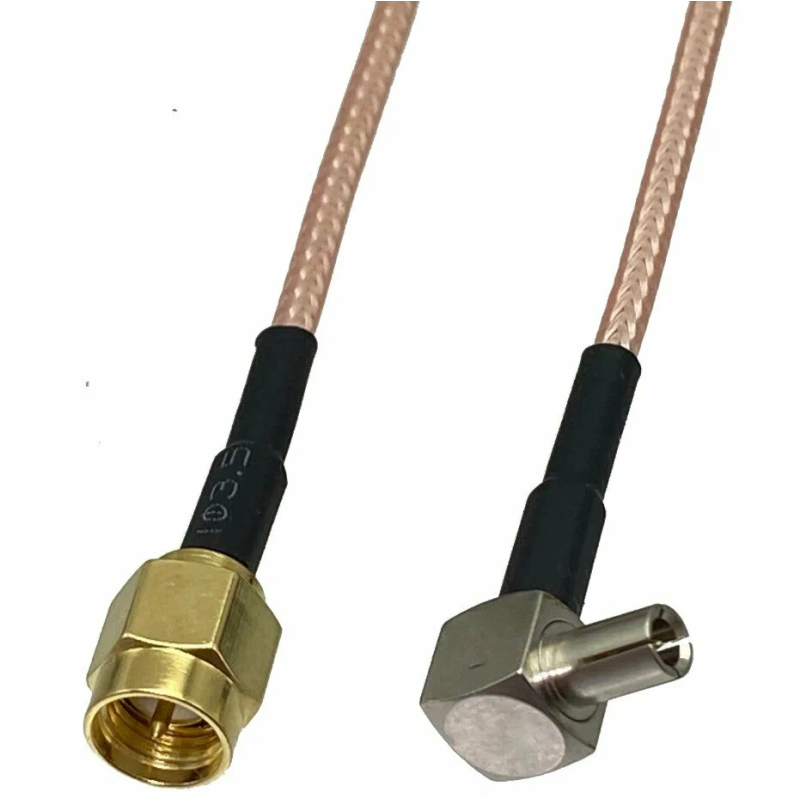

TS-9 to SMA Male Adapter – RF Coaxial Connector for Modems and Antennas – by Wassalat

The TS-9 to SMA Male Adapter is a high-quThe Wassalat TS-9 to SMA Male Adapter is a high-quality RF connector that allows you to attach an SMA male antenna to a device with a TS-9 input. Designed for use with 3G/4G/5G LTE USB modems and portable Wi-Fi hotspots, this adapter enables connection to high-gain external antennas, enhancing network reception in areas with weak coverage.

Key Features

• Converts TS-9 female port to SMA male

• Enables use of external SMA antennas on TS-9 devices

• Ideal for LTE, 4G, 5G, and GSM applications

• Compact design with durable build quality

• Gold-plated contacts ensure low signal loss and resistance to corrosion

• Plug-and-play – no tools required

Specifications

• Connector A: TS-9 Male

• Connector B: SMA Male

• Impedance: 50 Ohm

• Frequency Range: DC to 6 GHz

• Material: Brass with nickel plating, gold-plated center pin

• Insertion Loss: < 0.2 dB

• Operating Temperature: -40°C to +85°C

• Total Length: Approx. 2.5–3 cm

• VSWR: ≤ 1.3 typical

Compatible Devices & Applications

• 3G/4G/5G LTE USB modems and mobile hotspots

• Huawei, ZTE, Netgear, TP-Link with TS-9 ports

• External SMA antennas (LTE, GSM, Wi-Fi)

• Signal boosters, routers, and repeaters

• Wireless network upgrades for mobile and remote use

ality RF connector that allows you to attach an SMA male antenna to a device with a TS-9 input. Designed for use with 3G/4G/5G LTE USB modems and portable Wi-Fi hotspots, this adapter enables connection to high-gain external antennas, enhancing network reception in areas with weak coverage.

Key Features

• Converts TS-9 female port to SMA male

• Enables use of external SMA antennas on TS-9 devices

• Ideal for LTE, 4G, 5G, and GSM applications

• Compact design with durable build quality

• Gold-plated contacts ensure low signal loss and resistance to corrosion

• Plug-and-play – no tools required

Specifications

• Connector A: TS-9 Male

• Connector B: SMA Male

• Impedance: 50 Ohm

• Frequency Range: DC to 6 GHz

• Material: Brass with nickel plating, gold-plated center pin

• Insertion Loss: < 0.2 dB

• Operating Temperature: -40°C to +85°C

• Total Length: Approx. 2.5–3 cm

• VSWR: ≤ 1.3 typical

Compatible Devices & Applications

• 3G/4G/5G LTE USB modems and mobile hotspots

• Huawei, ZTE, Netgear, TP-Link with TS-9 ports

• External SMA antennas (LTE, GSM, Wi-Fi)

• Signal boosters, routers, and repeaters

• Wireless network upgrades for mobile and remote use
