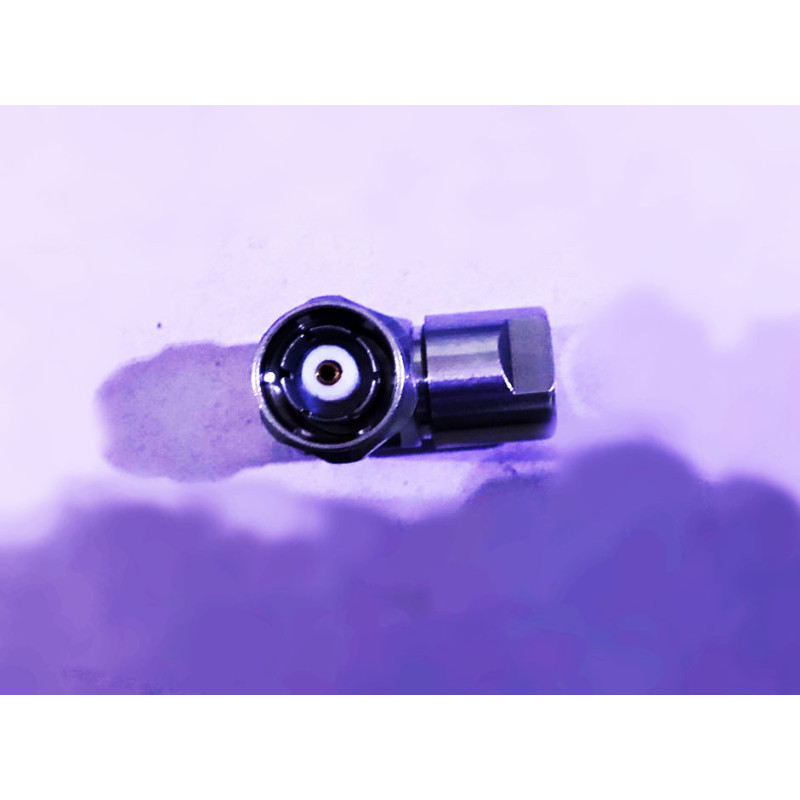

Rosenberger TNC RP-Male Connector – 50 Ohm Right-Angle Plug, Clamp Termination for LMR400 & TZC 500

The Rosenberger TNC RP-Male Right-Angle Connector from Wassalat is a professional-grade RF connector engineered for high-performance telecom and antenna systems. Designed for LMR400 and TZC 500 cables, this 50 Ohm connector provides low VSWR, excellent mechanical durability, and reliable clamp termination.

The right-angle design ensures flexibility in installations where space is limited, while the Rosenberger quality standard guarantees long-term stability and RF integrity.

Key Features

• Brand: Rosenberger

• TNC Reverse-Polarity (RP) Male connector

• Right-angle plug design for space-constrained installations

• 50 Ohm impedance, low VSWR

• Clamp termination for secure cable connection

• Rugged nickel-plated housing with gold-plated contact

• Designed for large coaxial cables (LMR400, TZC 500)

Specifications

• Connector Type: TNC RP-Male, Right Angle

• Impedance: 50 Ohm

• Frequency Range: DC – 6 GHz

• Termination Type: Clamp

• Cable Compatibility: LMR400, TZC 500

• Body Material: Nickel-plated brass

• Center Contact: Gold-plated brass

• Insulator: PTFE

• VSWR: ≤ 1.3 (typical)

• Durability: >500 mating cycles

• Temperature Range: -65°C to +165°C

Applications

• Telecom base stations

• Antenna and RF feeder lines

• Wireless communication equipment

• Test and measurement systems

• Military and industrial RF systems
