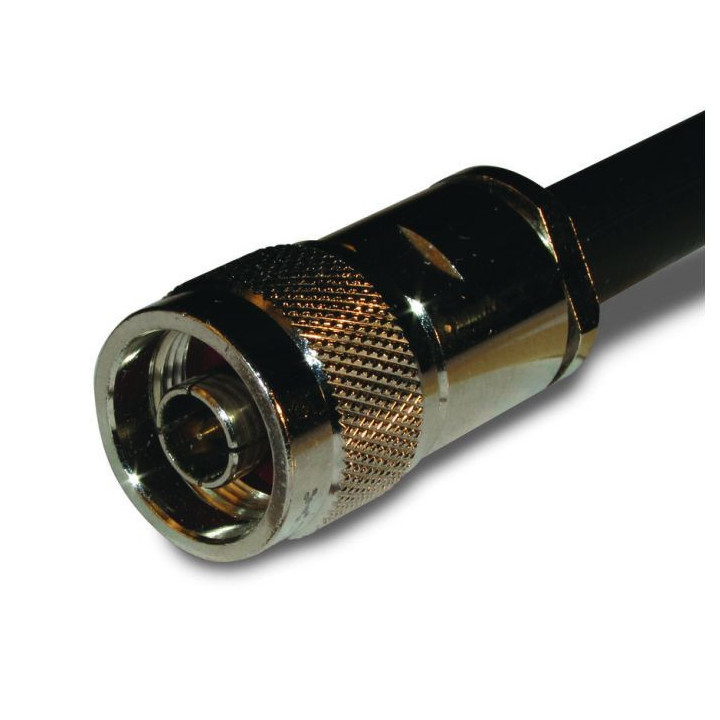

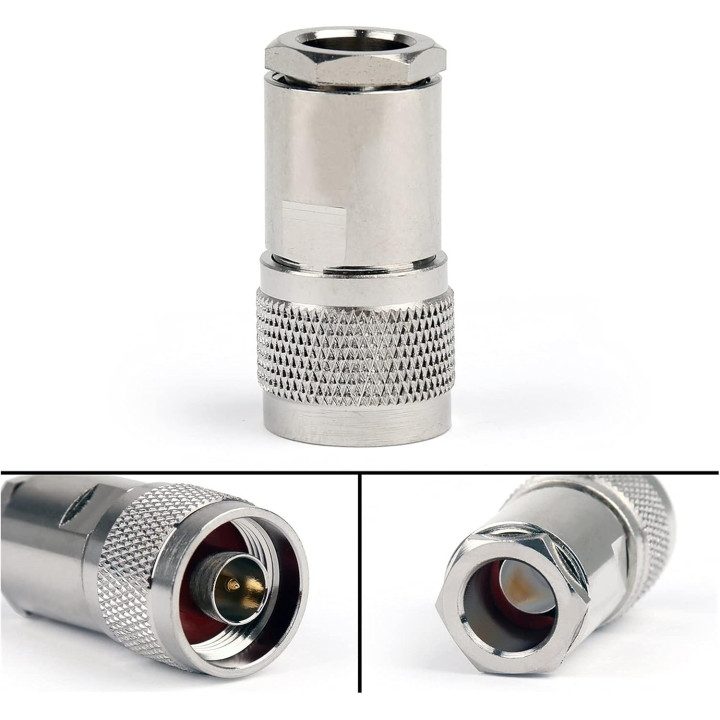

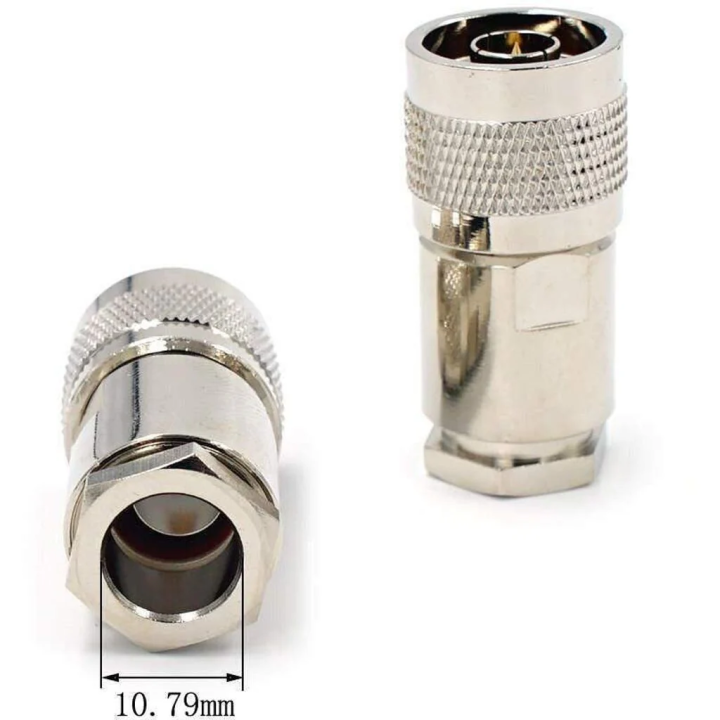

N-Type Straight Clamp Plug – Compatible with RG-8, RG-213, RG-225 , TZC500 (50 Ohm)

The N-Type Straight Clamp Plug from Wassalat is a precision-engineered RF connector designed for use with RG-8, RG-213, and RG-225 coaxial cables. With a 50 Ohm impedance, this connector ensures low insertion loss, excellent VSWR performance, and reliable durability.

Featuring a clamp-style termination, it provides a secure and long-lasting connection, making it a trusted choice for telecom, broadcast, and antenna installations. Its rugged metal body and weather-resistant construction make it suitable for both indoor and outdoor applications.

Key Features

• N-Type straight plug with clamp termination

• Compatible with RG-8, RG-213, and RG-225 coaxial cables

• 50 Ohm impedance for RF and telecom systems

• Rugged nickel-plated brass housing

• Gold-plated center pin for superior conductivity

• Low VSWR for minimal signal loss

• Designed for long-term performance

Specifications

• Connector Type: N-Type Plug, Straight

• Impedance: 50 Ohm

• Cable Compatibility: RG-8, RG-213, RG-225

• Termination Style: Clamp

• Frequency Range: DC – 11 GHz

• Body Material: Nickel-plated brass

• Center Contact: Gold-plated brass

• Insulator: PTFE

• Durability: >500 mating cycles

• Temperature Range: -65°C to +165°C

Applications

• Telecom base stations

• Antenna and RF feeder lines

• Wireless communication systems

• Laboratory and RF test setups

• Military and industrial RF communication
