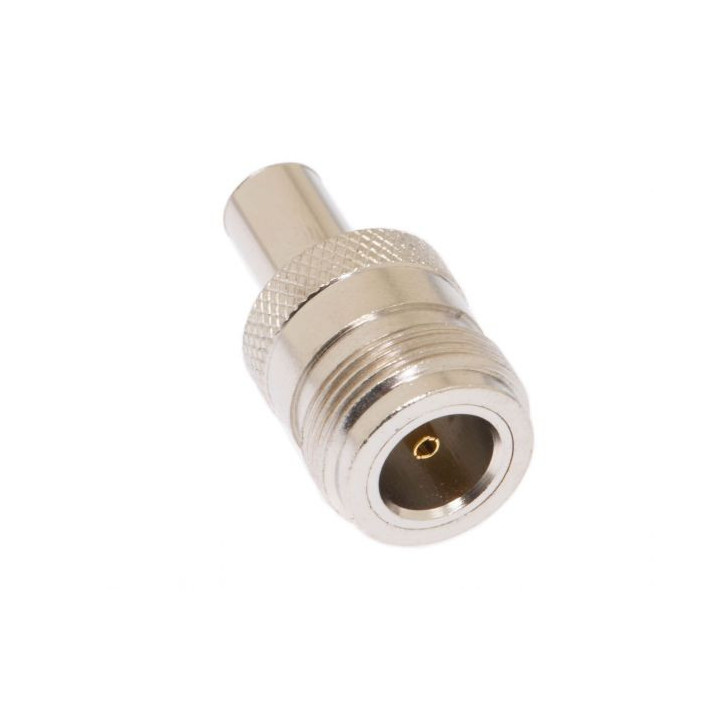

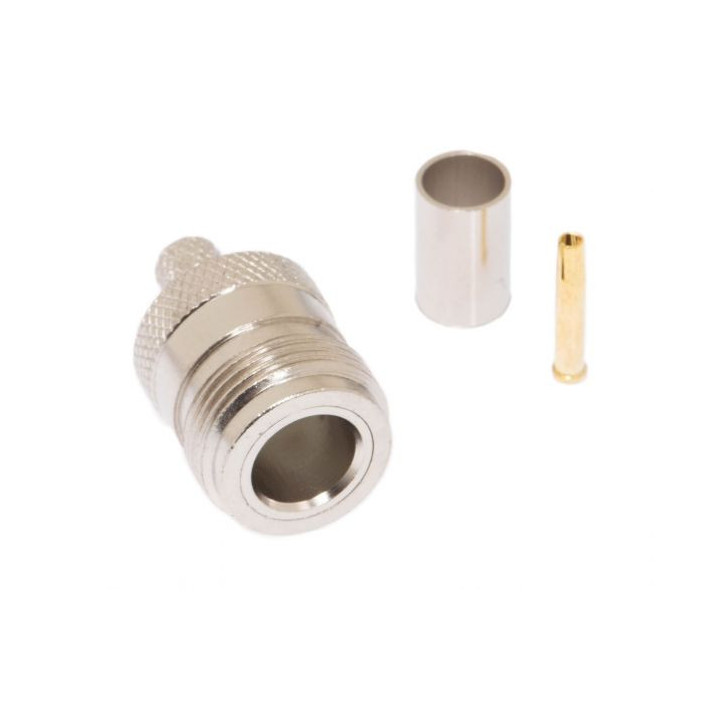

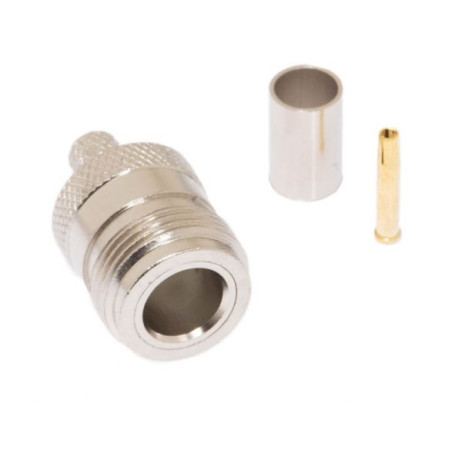

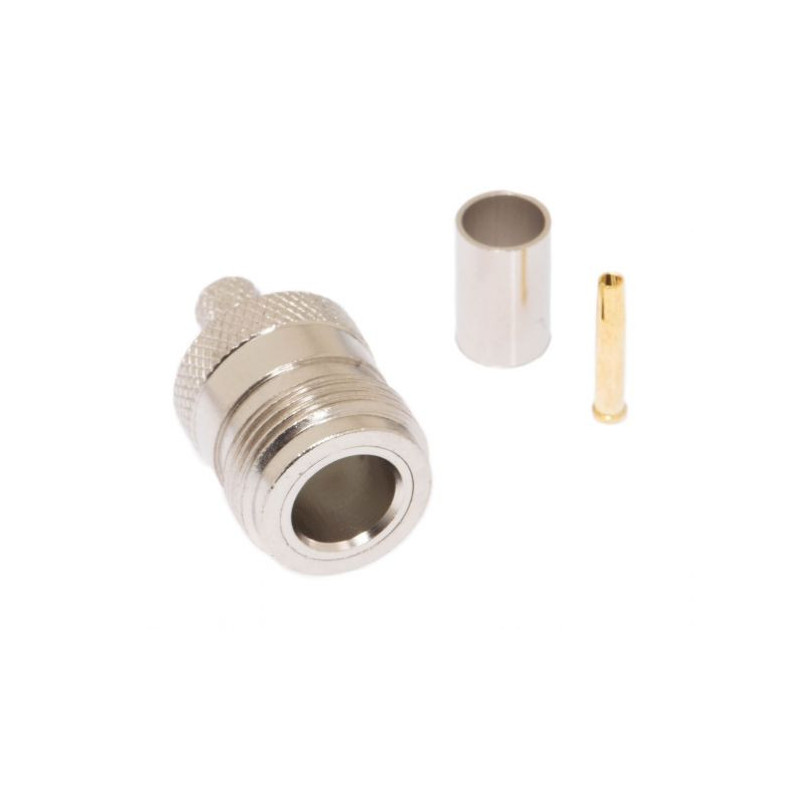

N Type Female Connector for LMR240 Cable

Overview

The N Type Female Connector for LMR240 Coaxial Cable, supplied by Wassalat, is a premium 50 Ohm RF connector designed for secure and reliable termination of LMR240 low-loss coaxial cable. It delivers excellent electrical performance with low insertion loss and high shielding effectiveness, making it ideal for professional RF and wireless communication applications.

N Type connectors are widely recognized for their durability and weather-resistant threaded coupling, making them suitable for both indoor and outdoor installations. This connector is commonly used in antenna systems, Wi-Fi networks, LTE and 5G infrastructure, IoT devices, radio communication, and RF test equipment.

Key Features

• Designed specifically for LMR240 low-loss coaxial cable
• N Type Female connector with 50 Ohm impedance
• Threaded coupling for secure and vibration-resistant connection
• Low insertion loss and excellent VSWR performance
• High shielding effectiveness for stable RF transmission
• Durable precision-machined metal construction
• Suitable for indoor and outdoor RF installations

Technical Specifications

• Connector Type: N Type Female Jack
• Cable Compatibility: LMR240 Coaxial Cable
• Impedance: 50 Ohm
• Frequency Range: DC to 6 GHz (typical, depending on installation quality)
• Termination Method: Crimp / Clamp (model dependent)
• Body Material: Brass
• Finish: Nickel-plated body with gold-plated center contact (model dependent)
• Application: RF, wireless communication, telecom, LTE, Wi-Fi, GPS, industrial networking

Compatible Devices

• 4G LTE and 5G antennas
• Wi-Fi access points
• Outdoor wireless bridges
• Signal boosters and repeaters
• Industrial IoT gateways
• RF communication equipment
• Radio communication systems
• RF test and measurement instruments

FAQ

What cable is this N Type Female connector designed for?
It is specifically designed for LMR240 low-loss coaxial cable.

Is this connector suitable for outdoor installations?
Yes. N Type connectors feature a threaded coupling mechanism that provides a secure connection and is commonly used in outdoor RF and antenna systems.

Can this connector be used with LTE and Wi-Fi antennas?
Yes. It is widely used with LTE routers, Wi-Fi equipment, GPS systems, RF antennas, signal boosters, and telecom infrastructure.

What is the impedance of this connector?
This connector is designed for standard 50 Ohm RF communication systems.

Can Wassalat manufacture complete RF cable assemblies?
Yes. Wassalat manufactures custom RF cable assemblies using LMR240, LMR400, RG58, RG223, RG213, RG214, and other coaxial cables with N Type, SMA, TNC, BNC, DIN, UHF, and many other connector combinations.
