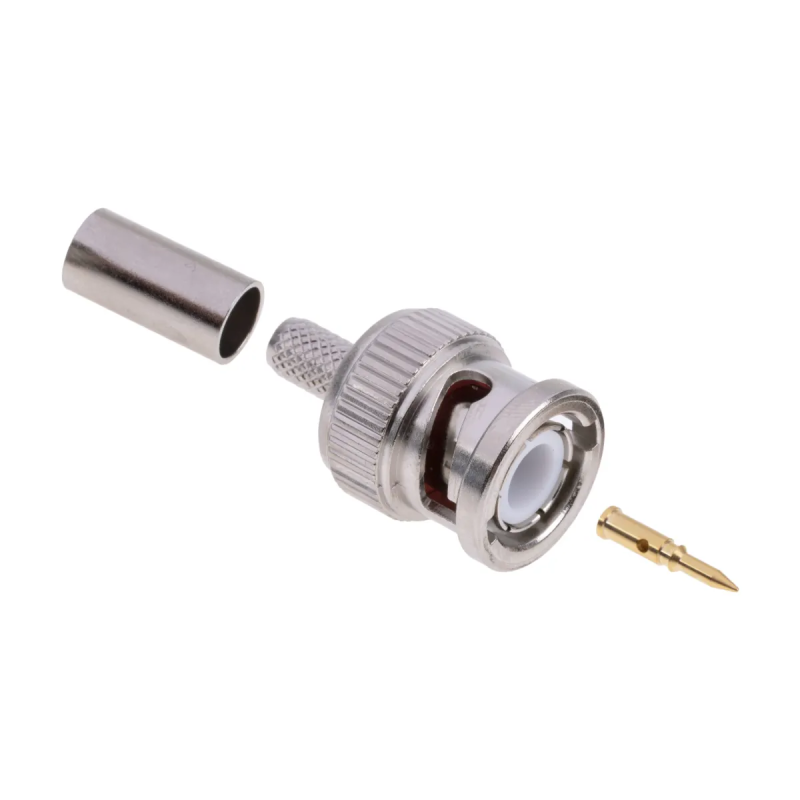

BNC Male Crimp Straight Connector – 50 Ohm RF Coaxial Connector

The Wassalat BNC Male Crimp Straight Connector is a precision-engineered RF connector designed for fast, secure, and professional coaxial cable terminations. Its bayonet-style locking mechanism ensures a strong connection while maintaining low signal loss. Ideal for use in video, RF communication, and test equipment, this connector supports 50 Ohm impedance for wide compatibility across RF systems.

Key Features

• Straight design for easy, inline installations

• Crimp-style connection for quick, secure cable attachment

• Standard BNC bayonet locking for reliable mating

• Compatible with RG58, RG174, LMR-100, and similar 50 Ohm cables

• Durable brass body with nickel or gold plating

• Low insertion loss and consistent impedance

• Professional-grade construction for long-term use

Specifications

• Connector Type: BNC Male

• Mounting Style: Crimp (body and pin)

• Orientation: Straight

• Impedance: 50 Ohm

• Frequency Range: DC to 4 GHz

• Material: Brass body (nickel-plated or gold-plated); gold-plated center pin

• Cable Compatibility: RG58, RG174, LMR-100, and other 50 Ohm cables

• Temperature Range: -55°C to +155°C

• Insertion Loss: ≤ 0.2 dB @ 1 GHz

Compatible Devices & Applications

• CCTV and video surveillance systems

• RF and test instruments

• Broadcast and audio/video setups

• Signal analyzers and oscilloscopes

• Ham radio and antenna connections

• Lab testing environments
