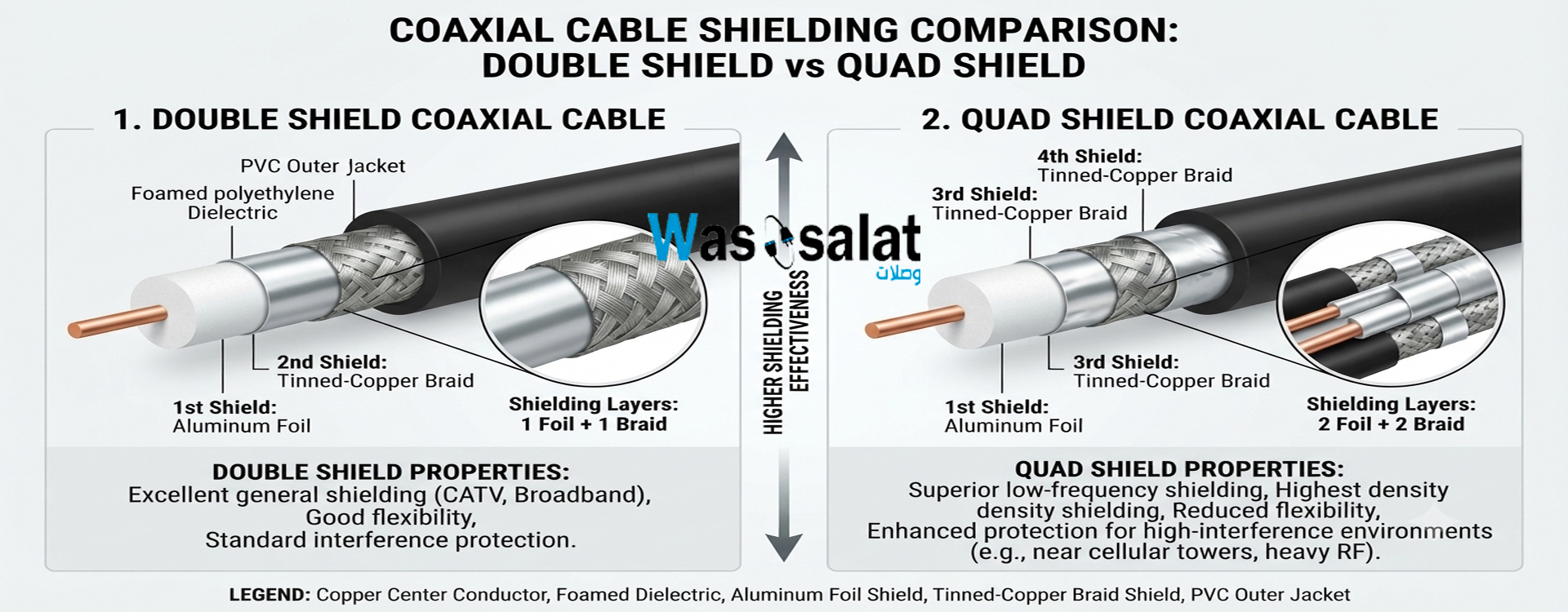

Double Shield vs Quad Shield: Which Coaxial Cable Should You Choose?

Published by Wassalat Technical Team

When shopping for coaxial cables, you'll often see terms like "dual shield," "double shield," and "quad shield." But what do they mean? And which one do you need?

This comprehensive guide compares double shield and quad shield coaxial cables—explaining the differences in construction, performance, applications, and cost—so you can make the right choice for your installation.

Quick Overview

The short answer is: Quad shield provides maximum protection against interference, while double shield offers a good balance of performance and cost.

Double Shield

What it is: Two layers of shielding—typically foil + braid or double braid.

Protection Level: Good (≈100% coverage)

Cost: Moderate

Flexibility: Good

Best For: Cable TV, broadband internet, most residential installations

Quad Shield

What it is: Four layers of shielding—foil + braid + foil + braid.

Protection Level: Excellent (≈100% coverage)

Cost: Higher

Flexibility: Reduced

Best For: Satellite TV, high-interference areas, commercial installations

Double Shield Explained

Double shield (also called "dual shield") is the most common shielding configuration for coaxial cables. It typically consists of:

Construction

1. Layer 1: Foil – Thin aluminum foil wrapped around the dielectric (100% coverage)
2. Layer 2: Braid – Woven copper or aluminum wires over the foil (60-95% coverage)

Some double shield cables use two layers of braid (no foil). This is common in LMR series cables like LMR-400, which uses foil + double braid.

Characteristics

Types of Double Shield

Double Shield Advantages

• ✅ Good protection – Blocks most interference
• ✅ Flexible – Easy to route and install
• ✅ Cost-effective – Reasonable price
• ✅ Easy to terminate – Works with standard connectors
• ✅ Industry standard – Used in most residential and commercial installations

Double Shield Disadvantages

• ❌ Less protection than quad shield – Not ideal for high-interference areas
• ❌ Not recommended for satellite TV – May not provide enough protection

Quad Shield Explained

Quad shield provides the highest level of protection with four layers of shielding. It's the recommended choice for satellite TV and high-interference environments.

Construction

1. Layer 1: Foil – Wrapped around the dielectric (100% coverage)
2. Layer 2: Braid – Woven over foil layer 1
3. Layer 3: Foil – Wrapped over braid layer 1 (100% coverage)
4. Layer 4: Braid – Woven over foil layer 2

Characteristics

Quad Shield Advantages

• ✅ Maximum protection – Blocks nearly all interference
• ✅ Ideal for satellite TV – Essential for weak satellite signals
• ✅ Excellent high-frequency performance
• ✅ Best for urban/high-interference areas
• ✅ Reduces pixelation and signal dropout

Quad Shield Disadvantages

• ❌ Stiffer – Less flexible than double shield
• ❌ More expensive – Higher cost per foot
• ❌ Harder to terminate – Requires more care and sometimes special connectors
• ❌ Overkill for many applications – Not needed in low-interference areas

Side-by-Side Comparison

Applications Guide

When to Use Double Shield

When to Use Quad Shield

Cost Comparison

Installation Considerations

Double Shield Installation

• ✅ Easy to strip – Two layers only
• ✅ Standard connectors – Works with most F-Type connectors
• ✅ Flexible – Easy to route in tight spaces
• ✅ Bend radius – 2-3 inches typical

Quad Shield Installation

• ⚠️ Harder to strip – Four layers require more care
• ⚠️ May need special connectors – Some connectors are designed for quad shield
• ⚠️ Less flexible – Stiffer, harder to route
• ⚠️ Bend radius – 3-4 inches typical
• ⚠️ More time – Takes longer to terminate

Frequently Asked Questions (FAQ)

1. What is the difference between double shield and quad shield?

Double shield has 2 layers (foil + braid or braid + braid). Quad shield has 4 layers (foil + braid + foil + braid). Quad shield provides better interference protection.

2. Do I need quad shield for cable TV?

Usually not. Double shield is sufficient for most cable TV installations. Quad shield is recommended for satellite TV and high-interference areas.

3. Is quad shield worth the extra cost?

For satellite TV or high-interference areas, yes. The extra protection is essential. For standard cable TV, double shield is more cost-effective.

4. Does quad shield have more signal loss?

Quad shield has slightly higher signal loss than double shield due to the extra layers. However, the difference is minimal and usually not noticeable.

5. Can I use standard connectors on quad shield?

Some standard connectors work, but quad shield connectors are recommended for best results. They are designed to accommodate the thicker cable.

6. Is quad shield harder to install?

Yes. Quad shield is stiffer and harder to strip than double shield. It takes more time and care to terminate properly.

7. What is the best shielding for satellite TV?

Quad shield is the best choice for satellite TV. It provides maximum protection against interference for weak satellite signals.

8. Can I use quad shield for CCTV?

Yes, but it's usually overkill. Double shield is sufficient for most CCTV installations and is more flexible and easier to work with.

9. What is the difference between double shield and dual shield?

They are the same thing. "Double shield" and "dual shield" are interchangeable terms.

10. How do I identify quad shield cable?

Quad shield cables are usually thicker and stiffer than double shield cables. They may be marked "quad shield" or "4-layer shield" on the jacket.
